Solar-Powered Attic Fan
Features and Specifications
 Solar Panel
The latest
state-of-the-art circuitry captures sunlight even on overcast days. Totally
weatherproof, our panels are designed for optimum efficiency and are hail, and
extreme weather resistant.
Cover & Base
Molded with
UV-stabilized ABS plastic to prevent damage from sunlight. The top has a
shingled appearance that helps the unit blend in with the roof while also
providing additional stability and strength.
Fan Blade
Specially designed
5-blade, 12" aluminum fan is pitched for maximum air flow. It operates whisper
quiet with no harmonic noise.
Stainless Steel Screen
Keeps
animals out while allowing maximum air flow.
Mounting Hardware
Stainless
steel motor brackets and vertical standoffs provide a flexible and adjustable
frame for easy removal or replacement.
Product Warranty
5 year warranty on the motor
10 year warranty on all other parts including the solar module
|
Solar Attic Fan
Specifications |
| Solar Panel |
850 - 11-watt crystalline with tempered glass
1050
- 15-watt crystalline with tempered glass
1250 - 20-watt crystalline with
tempered glass |
| Motor |
1-38volt DC with external
brushes |
| Wire |
18/2 red/black |
| Fan Blade |
12" diameter, 5-blade aluminum with balanced
hub |
| Hardware |
Stainless steel motor brackets, fasteners, and
screen. Aluminum rivets. |
| Top and Base |
UV-Stabilized ABS plastic with acrylic cap
(can be painted) |
| Airflow |
850 - Moves up to 850 CFM in full
sunlight
1050 - Moves up to 1050 CFM in full sunlight
1250 - Moves up to
1250 CFM in full sunlight |
| Unit Dimensions |
Height 7", Top 25.5" x 21.25", Flat Base: 24.5" x 24.5" |
| Curb Base |
20.25" � x 20.25" �. Unit Weight:
15lbs |
| Package Size |
27.25" x 25.5" x 11.25" wide |
| Shipping Weight |
Model 850: 16 lbs
Model 1050: 18
lbs
Model 1250: 18 lbs |

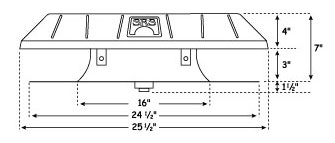

Flat-Base Model: For normal sloped shingle roofs
Flat Model Side View
Flat Model Top View

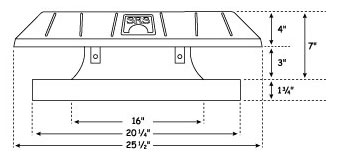

Curb-Base Model: For low-slope or flat roofs
Curb Model Side View
Curb Model Top View
