SolarSheat Installation Diagrams
|

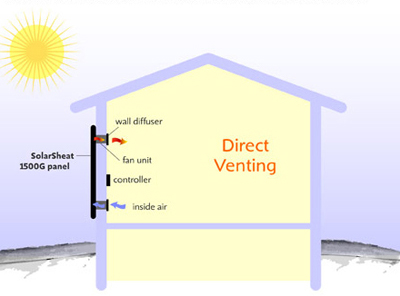

Direct Venting into a Room - SolarSheat 1500G
How it works: The SolarSheat 1500G panel heats inside air. The amount of heat produced is based on the volume of air passing through the solar panels and the degree of sunshine. The SolarSheat is a supplemental heating system. It does not work at night. No AC electricity is required.

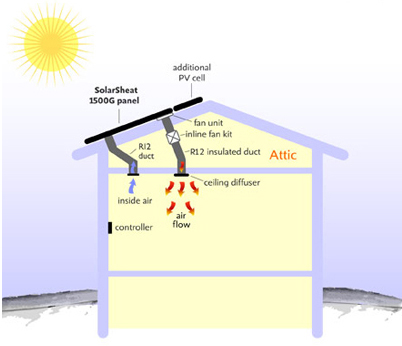

Roof Mounting - SolarSheat 1500G
How it works: The SolarSheat 1500G panel heats inside air. The amount of heat produced is based on the volume of air passing through the solar panels and the degree of sunshine. The inline fan kit can be powered by an AC/DC wall adapter or with additional PV cell to keep if off the grid.

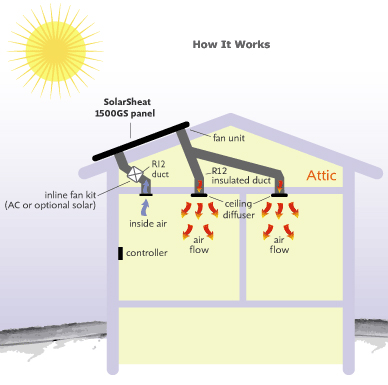

Solar Furnace Connection - SolarSheat 1500S
How it works: The SolarSheat 1500S panel heats fresh outside air that gets pulled into the makeup air side of our solar furnace. The hydronics furnace has a built-in aluminum core HRV. Two SolarSheat 1500S panels come with the 110KBTU/hr Solar Furnace.
Solar HRV for pre-heating and ventilation - SolarSheat 1500S
How it works: The SolarSheat 1500S panel heats fresh outside air that gets pulled into our Solar HRV. Two SolarSheat 1500S panels come with the Solar HRV
|
